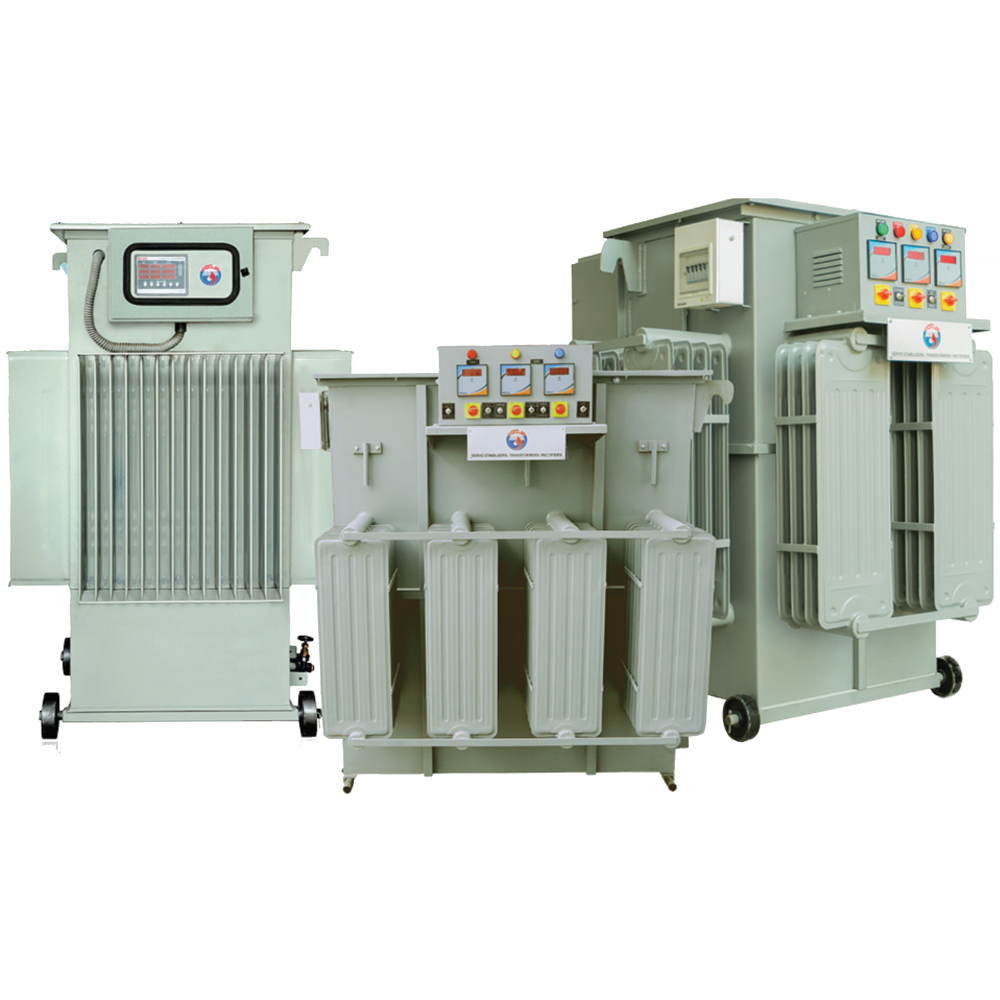

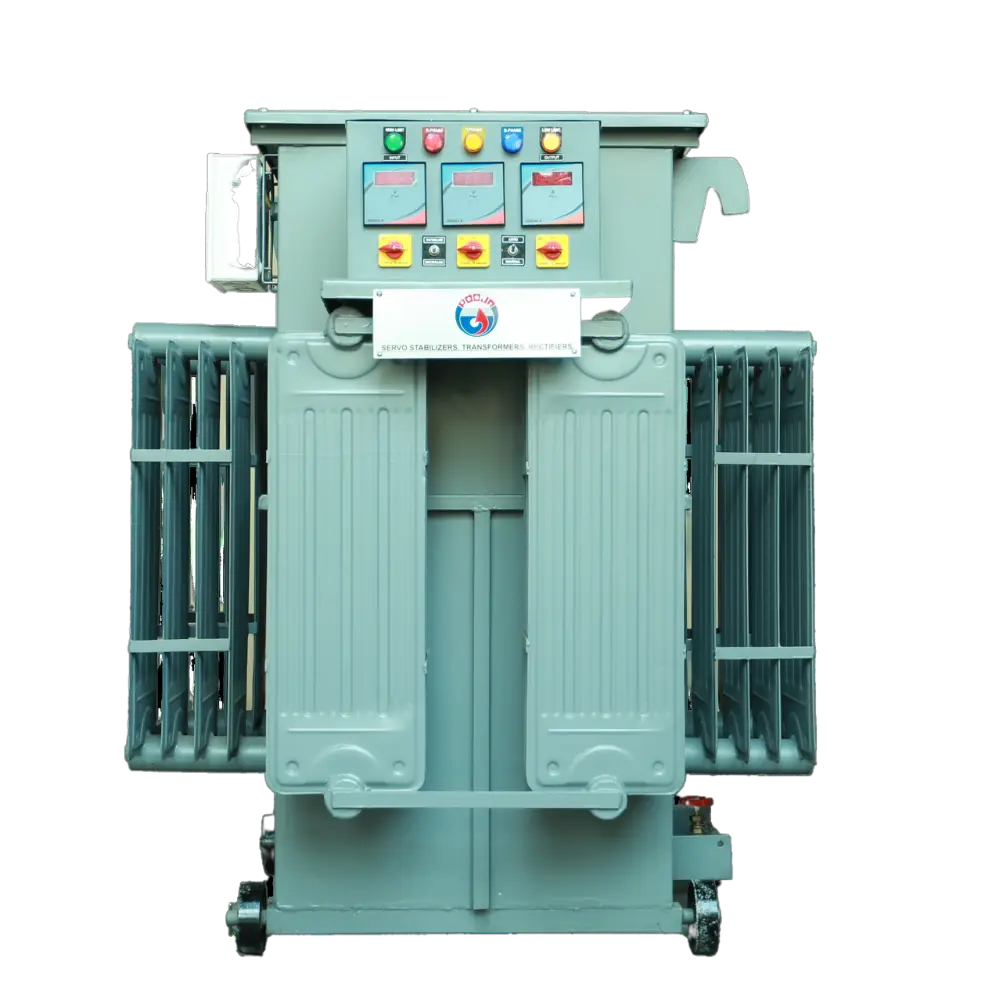

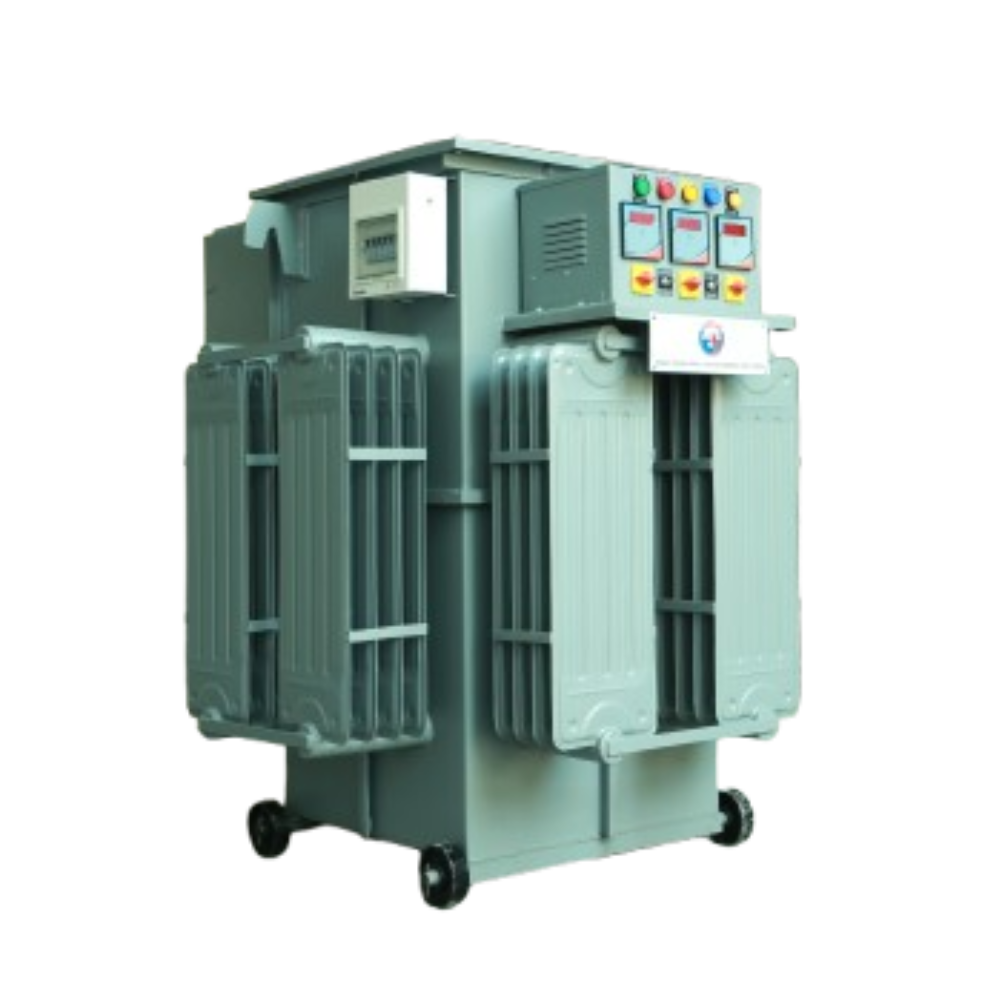

Automatic Voltage Controller/ Servo Stabilizer
Automatic voltage controller (AVC) is a device designed to maintain a constant voltage level in electrical systems, ensuring stable power supply and protecting equipment from voltage fluctuations. AVCs are commonly used in power distribution networks and industrial applications. AVC/Servo Stabilizer is usually applied at the LT side to ensure constant voltage supply to the incoming panel.
Reduce failure rate of Electrical equipments and Save energy by installing Automatic Voltage Controller
(A breakthrough in energy conservation)
Our AVC primarily consists of the following key components housed in the same tank
- Linear +/- Vertical Rolling Contact on-load Voltage Controller
- Double Wound Buck/Boost Transformer
- Control Panel with Microprocessor based control module
Technical Specifications
| Technology | Linear type on-load voltage regulators with step-less regulation with microprocessor-based control module (Also referred to as vertical rolling contact or columnar design) | ||||||||||
| No. of Phases | Three-phase | ||||||||||
| Type |
|
||||||||||
| Winding Material | 99.9% pure electrolytic grade Copper | ||||||||||
| Primary Voltage |
|
||||||||||
| Efficiency | ~99.5% >99% ~99% ~98.5% >98% | ||||||||||
| Secondary Voltage | 400V ±1% (Ph-Ph)/230V (Ph-N) or as per customer specification | ||||||||||
| Cooling | Oil Natural Air Natural (ONAN)- Pressed Steel Radiators or Corrugated Finwall | ||||||||||
| Duty Cycle | Designed for 100% continuous duty cycle and for a life of 18-20 years at extreme conditions | ||||||||||
| Response Time | Less than 10 milliseconds | ||||||||||
| Correction Rate | 6-15 Volts/second (up to 500 kVA) and 3-8 Volts/second (above 500 kVA) | ||||||||||
| Duty, Type | Continuous duty Outdoor/Indoor | ||||||||||
| Class Of Insulation | Class A | ||||||||||
| Insulating Oil | Mineral oil as per IS:335 / IEC:296 | ||||||||||
| Mounting | On Unidirectional rollers | ||||||||||
