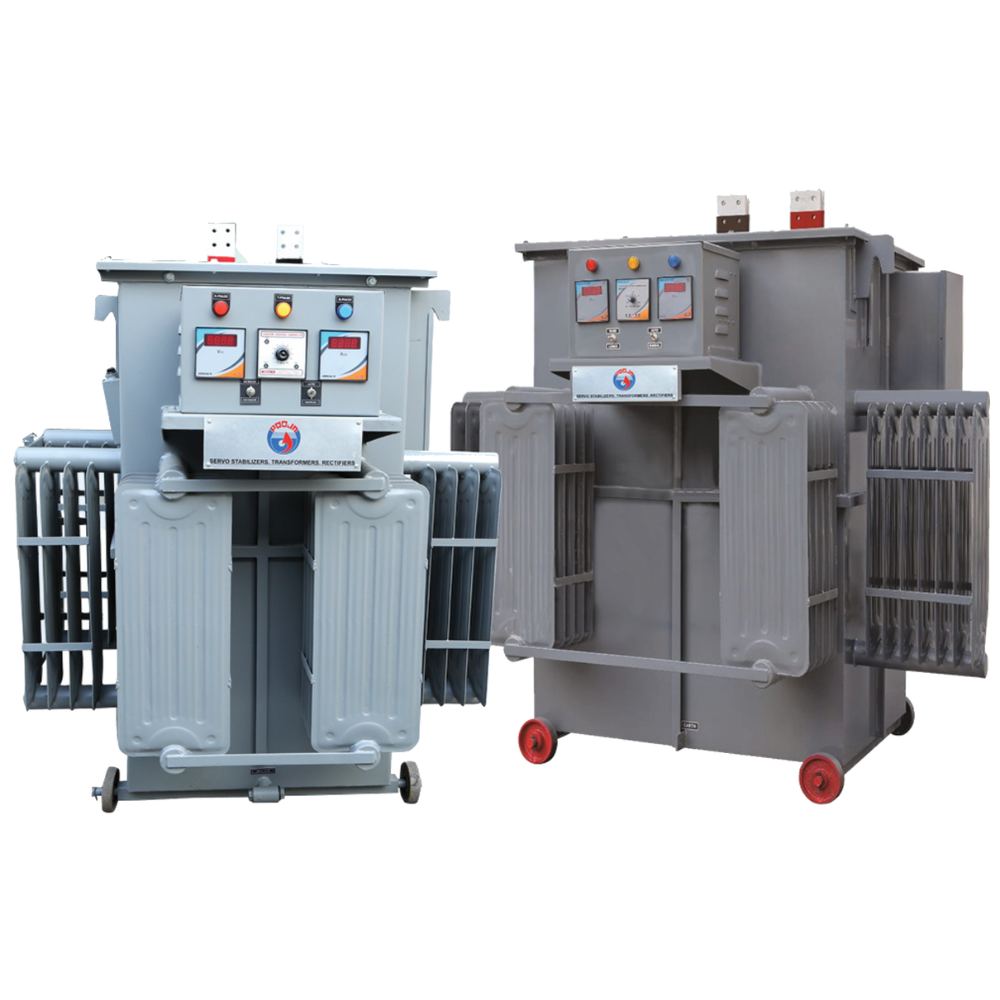

Rectifier
Rectifier is an equipment that converts AC into DC supply.
Rectifiers are designed for 3 phase, 50 Hz, 400/415 Volts, AC input supply. It is recommended that the input of the rectifier be connected through a proper protective device, to provide positive protection to the personnel and the system, in the event of maintenance or in case a fault occurs. Incoming protection switch gear (Contractors/MCCB etc.) can be provided as optional features, if required.
The function of the variable output controls is to control the voltage or current or the operating range by varying input voltage to the main transformer primary. The DC output voltage variation is achieved 0-100% by means of an ON LOAD roller type POOJA make Linear Voltage Regulator.
Silicon Rectifiers are widely used in Electroplating, Anodising, Hydrogenation and all other Electrochemical processes. POOJA Silicon Power Rectifiers are trusted for their energy efficiency and long life for numerous Electrochemical applications across the world.
Brief Specifications
Pooja Silicon Power Rectifiers are designed for continuous rated current with adequate margin of safety and are capable of working at 100% load factor.
| Input Voltage | 400/415 Volts, 3-Phase 50Hz., AC supply or any other voltage |
| Output Voltage | Fixed maximum rated DC voltage or variable from zero to maximum rated voltage |
| Output Current | From zero to rated maximum DC current |
| Temperature Rise | Designed for 30°c- 35°c rise above ambient at full load (against IEC std. of 45°c) |
| Efficiency | 2 V Rectifier: 86-88% 24-50 V Rectifier: 92-94% 100 V Rectifier: 94% 200V Rectifier: 96% More than 250 V Rectifier : >97% |
| Insulation | ‘A’ class for oil cooled |
| Ripple Content | Less than 5%. (optional feature of 1 to 1.5% Ripple Content also available) |
We also specialize in manufacturing as per customer requirements/specifications
